Microbulk Storage

Microbulk is a modern concept where your gas is supplied by filling on-site vs. the traditional method by handling numbers of empty cylinders and dewars. Microbulk enjoys outstanding features mean exceptional performance.

SinoCleanSky LNG microbulk is designed for small LNG applications. One Skid include: Tank+Pipe+Vaporizer+Pressure Regulation+Measurement+Odorization+Filling
The LNG storage tank is built on skid with LNG vaporizer. Other functions are optional such as pressure regulation, measurement, odorization and etc, which is very convenient for installation and operation.
Typical models are 1M⊃3;, 2M⊃3;, 3M⊃3;, 5M⊃3;, 5.8M⊃3;, 6M⊃3;, 7M⊃3;, 7.6M⊃3;, 10M⊃3; till 14.4M⊃3;.
Customization is available upon your specific requirements.

Microbulk is a modern concept where the gas is supplied by filling on-site vs. the traditional method by handling numbers of empty cylinders and dewars.

Microbulk enjoys outstanding features mean exceptional performance. Various tank sizes, pressures and configurations are available to meet.

Microbulk systems are available for oxygen, nitrogen, argon, carbon dioxide, nitrous oxide(N2O), LNG and in high pressure, high flow applications including laser assist gases.

VICTANK microbulk enjoys large capacity range from 1,000L to 10,000L, high vacuum multi-layer insulation with 7-year vacuum warranty.

MN2000MP

Capacity (Net Volume): 1896L (500gal)

MAWP: 1.6MPa (230psi)

Max Operating Pressure: 0.8MPa (116psi)

NER (Nitrogen): 0.6%/Day

Tare Weight: 1170kg (2579lbs)

Gas Delivery Rate: 75Nm³/H (2649SCFH)

Pallet Size (W×L): 1500×1500mm

Overall Height: 3060mm (120.47inch)

MN3000MP

Capacity (Net Volume): 2727L (720gal)

MAWP: 1.6MPa (230psi)

Max Operating Pressure: 0.8MPa (116psi)

NER (Nitrogen): 0.5%/Day

Tare Weight: 1750kg (3858lbs)

Gas Delivery Rate: 75Nm³/H (2649SCFH)

Pallet Size (W×L): 1700×1700mm

Overall Height: 3160mm (124.41inch)

MN5000MP

Capacity (Net Volume): 4651L (1228gal)

MAWP: 1.6MPa (230psi)

Max Operating Pressure: 0.8MPa (116psi)

NER (Nitrogen): 0.4%/Day

Tare Weight: 2613kg (5761lbs)

Gas Delivery Rate: 100Nm³/H (3532SCFH)

Pallet Size (W×L): 2100×2100mm

Overall Height: 3150mm (124.02inch)

MN7000MP

Capacity (Net Volume): 6227L (1674gal)

MAWP: 1.6MPa (230psi)

Max Operating Pressure: 1.0MPa (150psi)

NER (Nitrogen): 0.35%/Day

Tare Weight: 2800kg (6173lbs)

Gas Delivery Rate: 160Nm³/H (5651SCFH)

Pallet Size (W×L): 2200×2200mm

Overall Height: 3520mm (138.58inch)

Universal Specifications

Working Temperature: -196°C to +50°C

Material: Inner vessel (stainless steel), outer shell (304 stainless steel)

Safety Features: Pressure relief valves, leak detection systems, emergency shut-off

Optional Modules: Pressure regulation, odorization, remote monitoring, filling stations

Model	MN2000MP	MN3000MP	MN5000MP	MN7000MP
MAWP: Mpa(psi)	1.6(230)	1.6(230)	1.6(230)	1.6(230)
Max. Pre-set Operating Press: Mpa(psi)	0.8(116)	0.8(116)	0.8(116)	1(150)
Gorss Volume: L(gal)	2107(556)	3031(800)	5168(1365)	7041(1860)
Net Volume: L(gal)	1896(500)	2727(720)	4651(1228)	6227(1674)
NER (Nitrogen): %/Day	0.6	0.5	0.4	0.35
Tare Weight: kg(lbs)	1170(2579)	1750(3858)	2613(5761)	2800(6173)
Gaseous Volume (CO2/NG): Nmˆ3(SCF)	2749(97080)	3954(139634)	6743(238127)	9187(324435)
Gas delivery rate: Nmˆ3/H(SCFH)	75(2649)	75(2649)	100(3532)	160(5651)
Pallet Width “A”: mm(inch)	1500(59.05)	1700(66.92)	2100(82.67)	2200(86.61)
Pallet Length “B”: mm(inch)	1500(59.05)	1700(66.92)	2100(82.67)	2200(86.61)
Tank Diameter “D”: mm(inch)	1308(51.5)	1508(59.37)	1910(75.2)	2110(83.07)
Overall Height “H”: mm(inch)	3060(120.47)	3160(124.41)	3150(124.02)	3520(138.58)

Remark: The above specifications are only for our typical types. The more accurate & detailed parameters and technical drawings are available upon request

To ensure safe delivery of LNG Microbulk Tanks (regardless of size), SinoCleansky uses tailored packaging and shipping solutions:

Container options: Smaller models (1M⊃3;~5M⊃3;) fit in 20GP containers; larger models (7M⊃3;~14.4M⊃3;) use 40GP/40HQ or open-top containers (20OT, 40OT) for easy loading.

Securement: Tanks are fixed to skids with steel brackets and anti-vibration pads to prevent movement during transit (sea, land, rail).

Protective measures: Outer shells are wrapped in waterproof, scratch-resistant film; valves and fittings are covered with dust caps to avoid damage.

Global logistics: Coordinates with trusted freight forwarders to deliver to clients worldwide, including remote regions. For Central Asian clients, railway transportation is available for cost efficiency.

Documentation: Includes all necessary paperwork (certifications, inspection reports, packing lists) to streamline customs clearance.

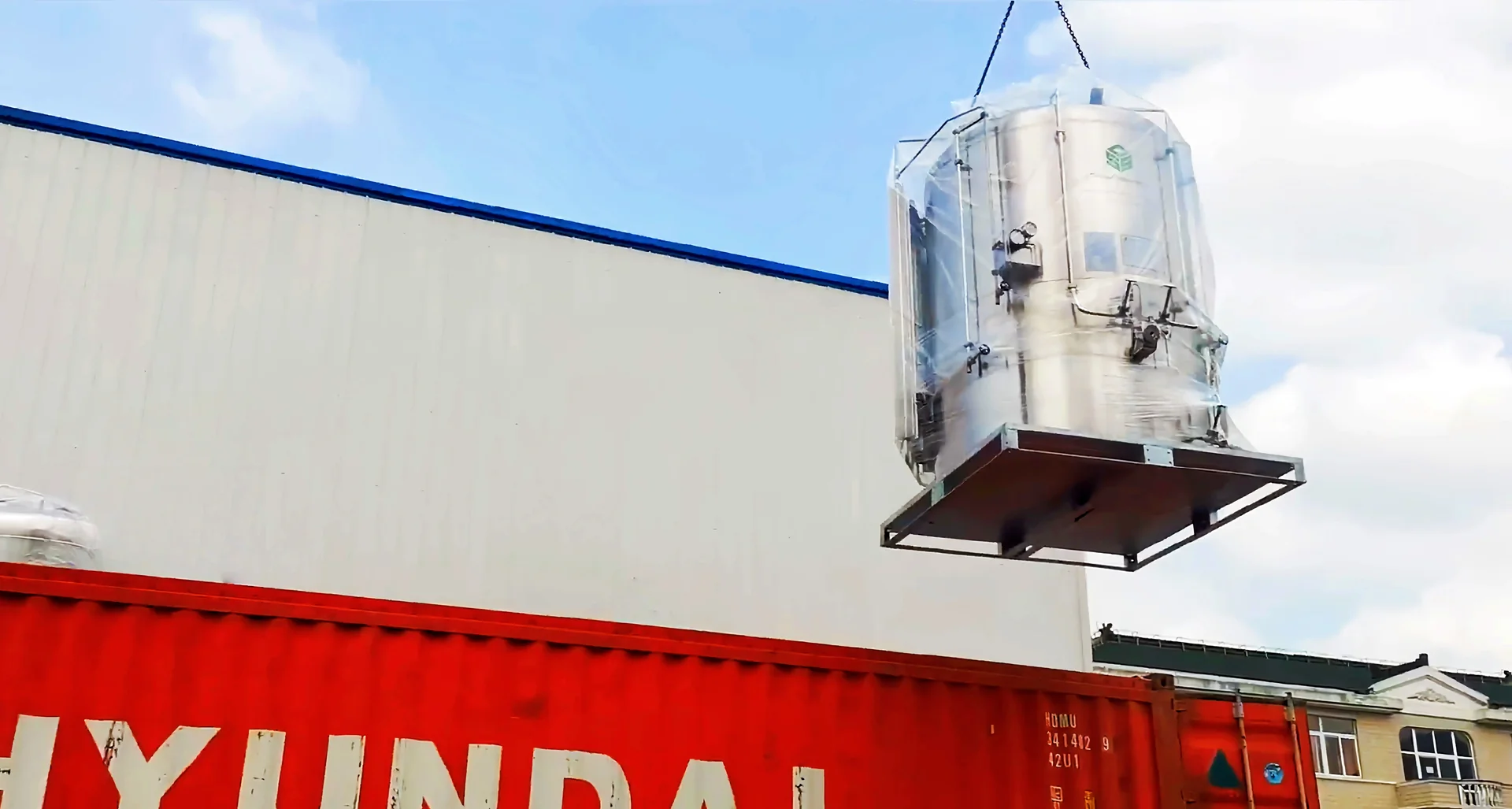

The LNG Microbulk can be shipped by various types of container, such as standard container 20GP, 40GP, 40HQ; open top container, such as 20OT, 40OT and etc.

LNG Microbulk Tank 1-14.4M³ Skid-Mounted

SinoCleansky’s LNG Microbulk Tank Series meets global quality standards, with comprehensive certification and warranty support:

Third-party inspection: All models are inspected by SGS (Report No.: IN-NJ-5801-21217-01), covering visual checks (no defects), dimension verification (compliant with drawings), air leakage tests (1.5MPa, no leakage), and document reviews (raw material certificates, NDT reports).

International compliance: Manufactured to ISO standards for cryogenic equipment, with optional certifications (ASME, CE, DOT) available to meet regional regulations (e.g., North America, EU, Southeast Asia).

100% traceability: Every component—from insulation materials to valves—can be traced to its source, with detailed quality records provided to clients.

Warranty: Standard warranty covers manufacturing defects for 12 months (extendable to 24 months), with dedicated after-sales teams for maintenance and technical support.

Reference certifications and reports:
