LNG Regasification Standard Station Process

As a core equipment for LNG utilization, the LNG Regasification Standard Station integrates LNG storage, pressure boosting, regasification, and gas supply functions, tailored for industrial, commercial, and municipal natural gas demand scenarios. It features a modular skid-mounted design, which significantly shortens on-site installation time and reduces construction costs.

Core Components & Functions:

LNG Storage Tank Skid: Serves as the core for LNG storage and fluid supply, available for purchase or provided directly by users based on specific demand.

Unloading PBU Skid: Ensures stable pressure boosting and pressure maintenance during LNG tanker unloading. It creates a normal pressure difference between the tanker and the storage tank, enabling efficient and safe LNG filling.

Regasification System: Optimizes gas supply stability. When the gas flow rate reaches or exceeds 1000Nm³/h, we recommend installing the LNG vaporizer as a separate skid or on an on-site foundation to avoid operational bottlenecks.

This station is widely used in scenarios such as industrial boiler gas supply, commercial central heating, and small-scale municipal gas networks, providing a reliable and efficient LNG-to-gas solution.

LNG regasification standard station

a) LNG storage tank skid: for LNG storage and the fluid supply, generally purchased or provided directly by the user.
b) Unloading PBU skid: for boosting and the constant pressure when the LNG tanker unloading fluid, then the LNG storage tanks can reach the normal fluid pressure difference, so the LNG tankers can irrigation charging.
c) When the flow rate≥1000Nm³/h, it is recommended LNG vaporizer prized separately or foundational separately on-site.

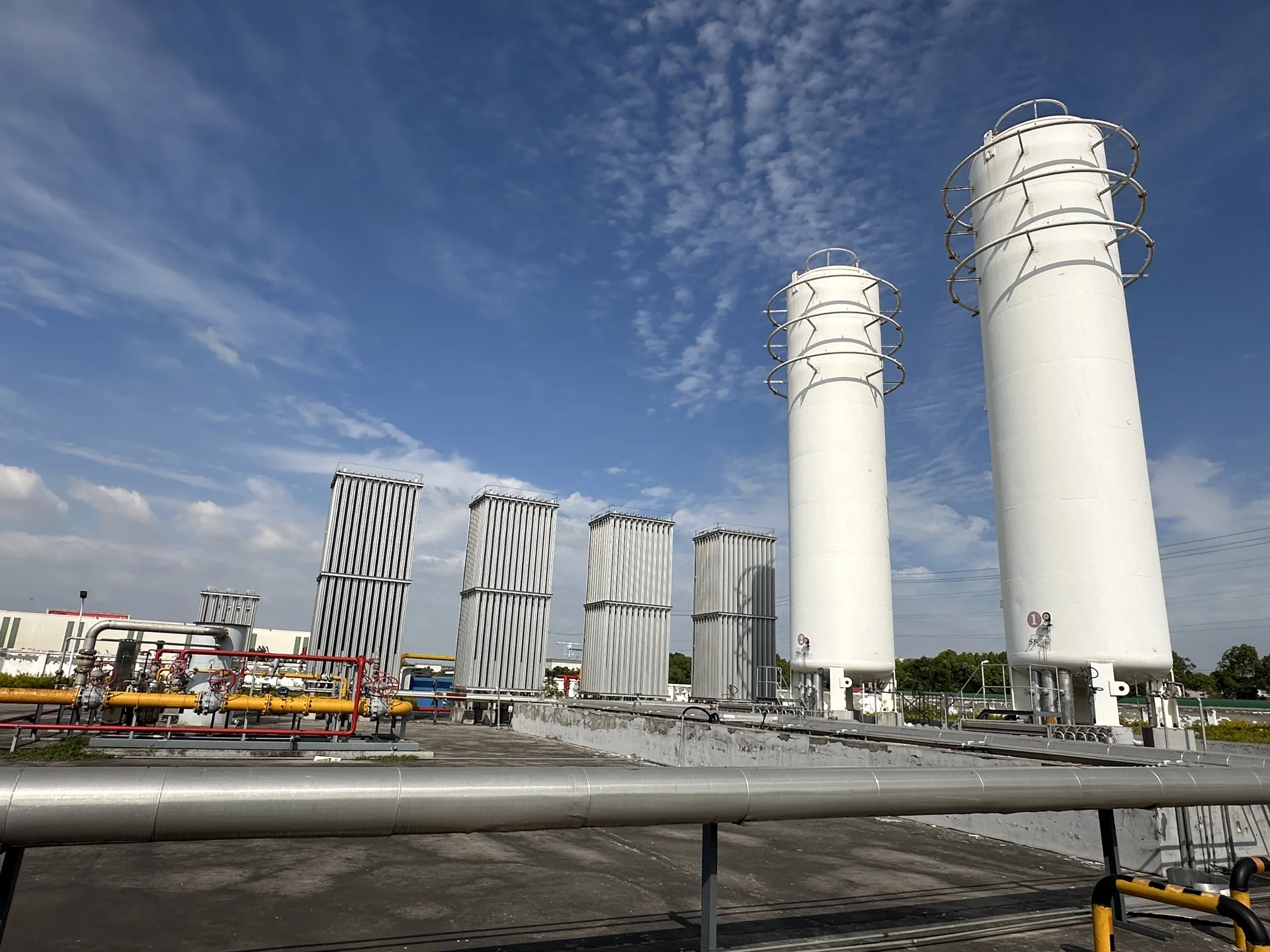

10282254_13

LNG Storage Tank: Popular sizes range from 20m³ to 200m³, with a built-in PBU (Pressure Building Unit) system for autonomous pressure regulation.

Vaporizer: 2 sets (optional), with a gasification capacity of 100~3000Nm³/H, ensuring continuous gas supply even during peak demand.

Reheater: Optional heating methods include electric heating and steam heating, adaptable to different on-site energy conditions.

Odorization Device: Optional self-priming pump or metering pump, complying with local gas safety standards by adding odorants for leak detection.

Metering System: Optional turbine flowmeter or Roots flowmeter, ensuring accurate gas consumption measurement for billing and management.

Safety & Monitoring: Optional remote monitoring system and emergency cut-off device, enabling real-time data tracking and rapid response to abnormal conditions.

Guide for LNG Solution Model Selection

Gas consumption NM3/day	Product Name	Max. Gas Supply NM3/H
Below 200	Cylinders	N·7 / N·11
100~2,000	Gas Cylinder Group Skid Station	200 Typical models: 100,150,200NM3/H
Around 1,000	Micro Bulk Station	200
500~10,000	Modular Gasification Station	2,000
FOR NGV	LNG REFILLING STATTION L-CNG REFILLING STATTION

Remark: LNG modular regas station can be customized based on per clients’ request.

The LNG modular regas station can be shipped by different types of containers, bulk vessel and etc.;

Packaging: Skid-mounted units are fixed with anti-collision buffers and moisture-proof materials to prevent damage during transportation. Valves, gauges, and other precision components are packed in separate waterproof boxes for extra protection.

Shipping Methods:

Container Shipping: Suitable for standard skid units, using 20GP, 40GP, or 40HQ containers based on skid size.

Bulk Vessel Shipping: For large-scale or customized skids, bulk vessels are used to accommodate oversized components.

On-site Coordination: Our logistics team coordinates with clients to confirm delivery schedules, customs clearance documents, and on-site unloading plans, ensuring a smooth supply chain.

SinoCleansky LNG modular regas station are manufactured under strictly quality control system. The LNG modular regas station are with inspection report submitted to clients. With client’s requirements, SinoCleansky will also provide some other certificates as per clients’ request. We assure you that all LNG modular regas station are 100% traceable.

Complies with the ASME Boiler and Pressure Vessel Code Rules, Section VIII, Division 1, a globally recognized standard for pressure equipment.

Provides a complete set of inspection reports to clients, including pressure test reports, non-destructive testing (NDT) reports, cold stretch test reports, and helium leak detection reports.

On request, additional certificates (such as material certification, welder qualification certificates) can be provided to meet local regulatory requirements.

Warranty & Traceability: All stations are 100% traceable, covering key components like storage tanks, valves, and vaporizers. We offer technical support and after-sales service throughout the product lifecycle to address operational issues promptly.

Reference certifications and reports:
