LNG Cylinder Group Regasification Skid Process

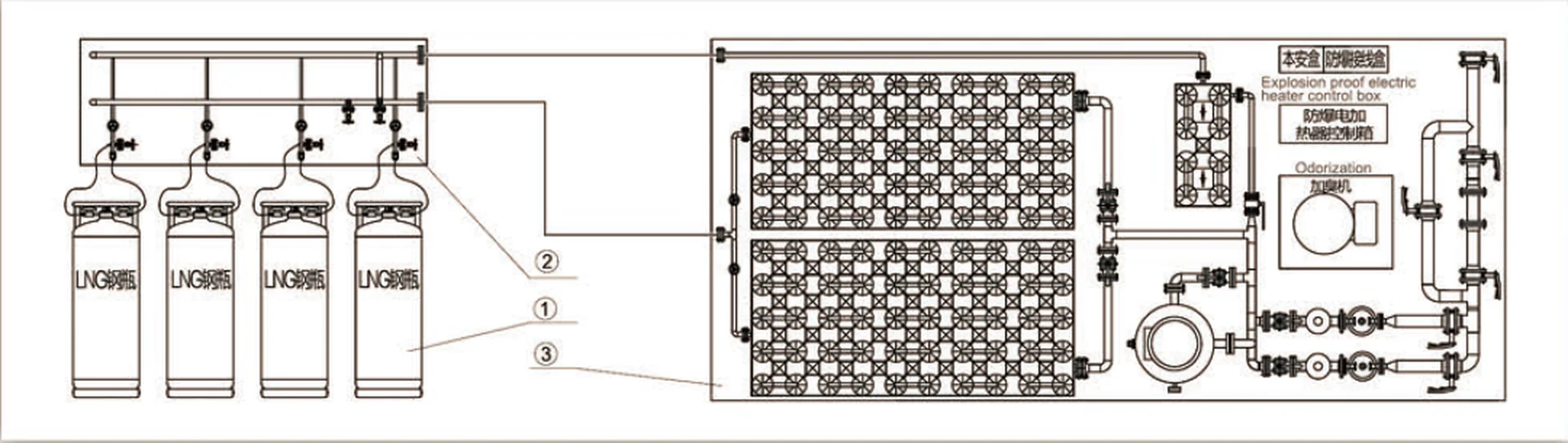

LNG cylinder group regasification skid process

a) LNG cylinders group: for LNG transfer, storage, and supply solution.
b) LNG periportal skid: for LNG and BOG gas assemble and transported to LNG gasification output pry.
c) LNG gasification output skid: for LNG gasification, complex heat, pressure regulator, metering, plus foul, so that post-gasification of nature gas in accordance with the requirements of the user’s constant, constant temperature, constant pressure to the output.

LNG cylinder group regasification skid process

a) LNG cylinders group: for LNG transfer, storage, and supply solution.

b) LNG periportal skid: for LNG and BOG gas assemble and transported to LNG gasification output pry.

LNG gasification output skid: for LNG gasification, complex heat, pressure regulator, metering, plus foul, so that post-gasification of nature gas in accordance with the requirements of the user’s constant, constant temperature, constant pressure to the output.

Guide for LNG Solution Model Selection

Gas consumption NM3/day	Product Name	Max. Gas Supply NM3/H
Below 200	Cylinders	N·7 / N·11
100~2,000	Gas Cylinder Group Skid Station	200 Typical models: 100,150,200NM3/H
Around 1,000	Micro Bulk Station	200
500~10,000	Modular Gasification Station	2,000
FOR NGV	LNG REFILLING STATTION L-CNG REFILLING STATTION

Remark: LNG modular regas station can be customized based on per clients’ request.

The LNG modular regas station can be shipped by different types of containers, bulk vessel and etc.;

SinoCleansky LNG modular regas station are manufactured under strictly quality control system. The LNG modular regas station are with inspection report submitted to clients. With client’s requirements, SinoCleansky will also provide some other certificates as per clients’ request. We assure you that all LNG modular regas station are 100% traceable.

Reference certifications and reports:
