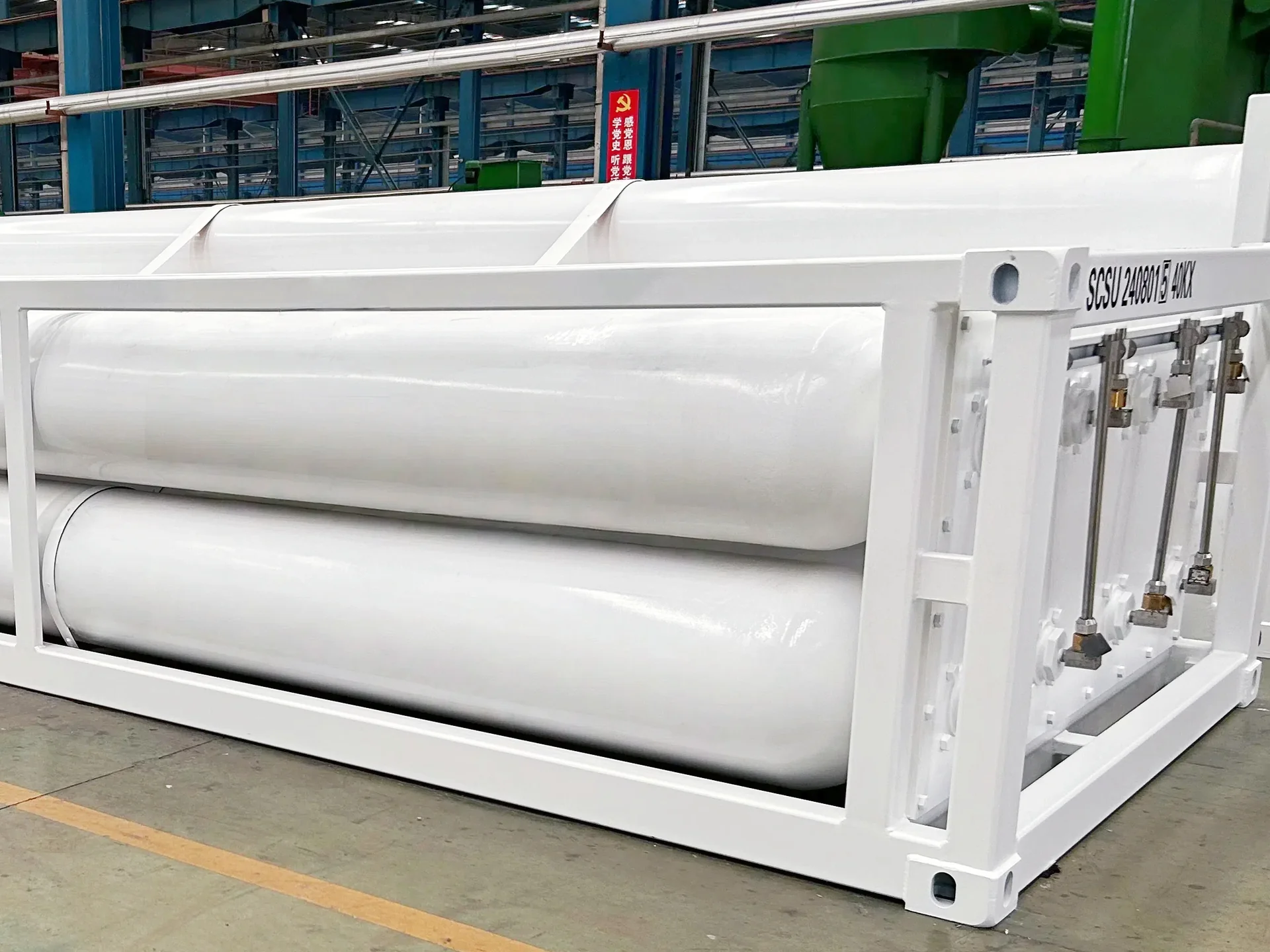

Jump to specsSinoCleansky’s 8Tubes 40ft Jumbo Tube Skid Container is a lightweight, high-efficiency solution for CNG and industrial gas storage—tailored for countries with lower road load requirements. As the lightest model in the MEGC (Mobile Equipment for Gas Container) series, it combines compact design with reliable performance, making it ideal for small-to-medium gas supply chains (e.g., regional CNG distribution, industrial gas delivery to factories).
-
Ultra-lightweight advantage: Upgraded 4142 steel reduces equipment weight by 6% (24240KG for light type) compared to traditional models, while increasing water capacity by 11% (19.6M⊃3;) for higher storage efficiency.
-
ISO 11120 compliance: Manufactured to international standards for refillable seamless steel tubes, with optional DOT/ASME certifications for North American and European markets.
-
Versatile filling media: Compatible with CNG, H₂, He, O₂, N₂O, and Ar—adapting to diverse industrial needs (e.g., hydrogen fuel cells, medical oxygen supply).
-
Easy integration: Simplified design with fewer valves and joints reduces on-site maintenance, while standard skid dimensions (12192×2438mm) fit most transport vehicles.
-
This container balances portability and capacity, making it a top choice for clients prioritizing road load compliance and cost-effective gas transport.
17.4mm Wall Thickness Popular Type for CNG
| Model No. | SCS0825CS-40F-559 | SCS0925CS-40F-559 | SCS1025CS-40F-559 | SCS1125CS-40F-559 | SCS1225CS-40F-559 | SCS1225CS-20F-559 |
| Cylinder quantity | 8 | 9 | 10 | 11 | 12 | 12 |
| Working pressure/MPa | 25 | 25 | 25 | 25 | 25 | 25 |
| Cylinder size/mm | OD559x17.4×10975 | OD559x17.4×10975 | OD559x17.4×10975 | OD559x17.4×10975 | OD559*17.4*10975 | OD559*17.4*5400 |
| Steel type | 4130X | 4130X | 4130X | 4130X | 4130X | 4130X |
| Working temperature | -50-65℃ | -50-65℃ | -50-65℃ | -50-65℃ | -50-65℃ | -50-65℃ |
| Equipment weight /KG | 25752 | 28721 | 31490 | 34259 | 37028 | 19632 |
| Water volume/M3 | 17.68 | 19.89 | 22.1 | 24.31 | 26.52 | 12.6 |
| Filling gas volume /NM3 | 5569 | 6265 | 6961 | 7657 | 8353 | 3969 |
| Total weight/KG | 29730 | 33197 | 36462 | 39728 | 42995 | 22467 |
| Skid/trailer dimension | 12192x2438x1400 | 12192x2438x1890 | 12192x2438x1890 | 12192x2438x1890 | 12192x2438x2000 | 6058x2438x2000 |
14.8mm Wall Thickness Light Type for CNG
| Model No. | SCS0825CS-40F-559 | SCS0925CS-40F-559 | SCS1025CS-40F-559 | SCS1125CS-40F-559 | SCS1225CS-40F-559 | SCS1225CS-20F-559 |
| Cylinder quantity | 8 | 9 | 10 | 11 | 12 | 12 |
| Working pressure/MPa | 25 | 25 | 25 | 25 | 25 | 25 |
| Cylinder size/mm | OD559*14.8*11570 | OD559*14.8*11570 | OD559*14.8*11570 | OD559*14.8*11570 | OD559*14.8*11577 | OD559*14.8*4950 |
| Steel type | 30CrMoLX | 30CrMoLX | 30CrMoLX | 30CrMoLX | 30CrMoLX | 30CrMoLX |
| Working temperature | -50-65℃ | -50-65℃ | -50-65℃ | -50-65℃ | -50-65℃ | -50-65℃ |
| Equipment weight /KG | 24240 | 27020 | 29600 | 32180 | 34760 | 17580 |
| Water volume/M3 | 19.6 | 22.05 | 24.5 | 26.95 | 29.4 | 12.792 |
| Filling gas volume /NM3 | 6174 | 6945 | 7717 | 8489 | 9261 | 4029 |
| Total weight/KG | 28650 | 31981 | 35112 | 38243 | 41375 | 20480 |
| Skid/trailer dimension | 12192x2438x1400n(skid) | 12192x2438x1890n(skid) | 12192x2438x1890n(skid) | 12192x2438x1890n(skid) | 12192x2438x2000n(skid) | 6058x2438x2000n(skid) |
Remark: 1. The data of filling gas volume, loading weight and total weight is based on CNG. n 2. The above specifications are only for our typical types. The more accurate & detailed parameters and technical drawings are available upon request

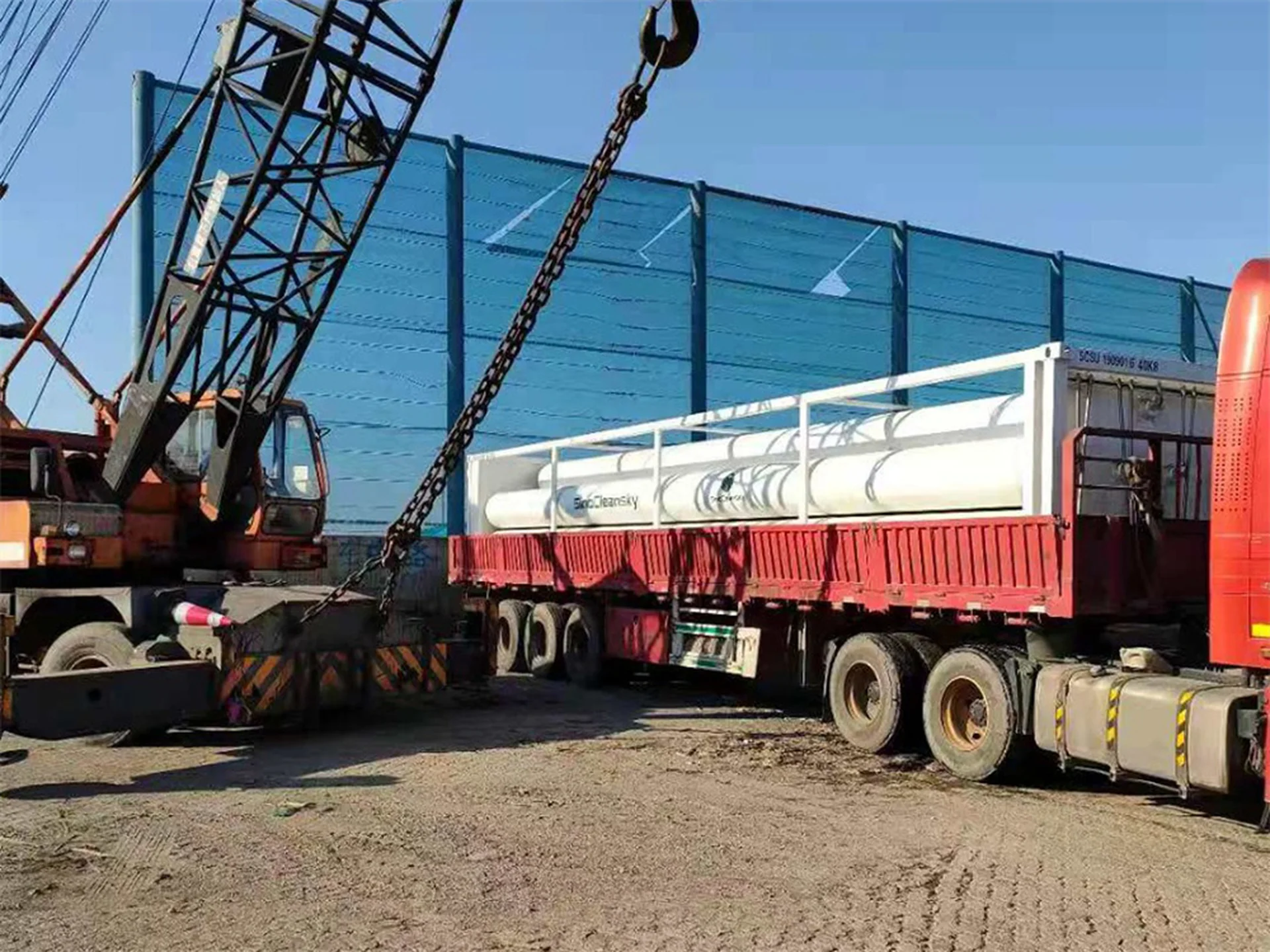

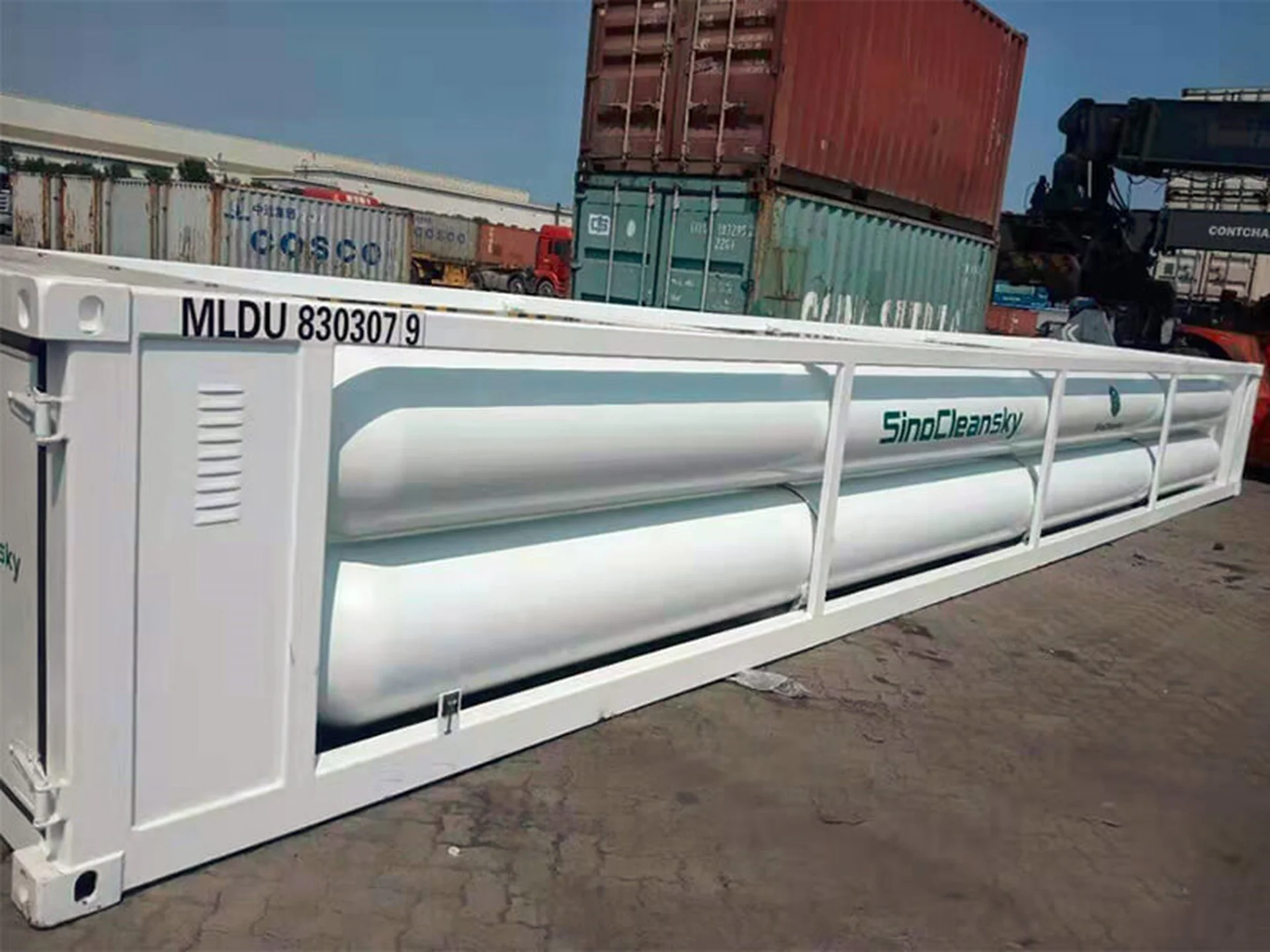

The 8Tubes 40ft Jumbo Tube Skid Container is shipped with a focus on safety, efficiency, and compliance:
Container compatibility: Fits in standard 40GP containers or open-top containers (40OT) for easy loading/unloading. Light type models can also be shipped in 20GP containers for cost savings.
Securement: Fixed to the container floor with high-tensile bolts and anti-vibration pads to prevent shifting during transit (sea, land, rail).
Protective packaging: Valves and fittings are covered with dust-proof caps; the skid frame is painted with anti-corrosion coating to resist saltwater or humidity during sea shipping.
Regional logistics: For Central Asian clients, railway transportation is available—offering a cost-effective alternative to road freight for long distances.
Documentation: Includes all necessary paperwork (certifications, inspection reports, packing lists) to ensure smooth customs clearance in target markets.
